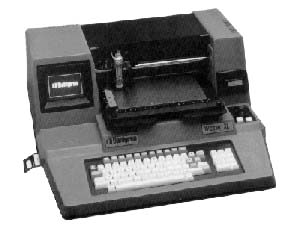

The Dahlgren "Wizzard" series of machines have
been the most desired model of engraving equipment for its' ease of use
but more importantly for its' durablility to continue to perform with
little or no end user intervention. If the machine fails, its design allows
for easy replacement or maintenance of sub-assemblies. The following list
details the spare parts that you can replace. If the part is not listed
call us toll free 800-554-2377 for additional information.
| STEPPER MOTOR used for the X,Y & Z axis. Complete with cable. Ready to install |
$160.00
|
| ROUTER MOTOR complete with noise suppression circuit & easy to replace external brushes |
$170.00
|
| ROUTER MOTOR BRUSH/each best replaced in sets of 2 |
$10.00
|
| ROUTER MOTOR BRUSHES set of six brushes |
$55.00
|
| MOTOR BELT | $15.00
|
| MOTOR BELTS set of two |
$25.00
|
| IDLER PULLEY BEARINGS these bearings are on the pullies that the motor belt wraps around |
$18.00
|
| CLAMP BAR SET the new ones with the A & B jigs on the same side |
$90.00
|
| PLATE SUPPORT BAR a 2 inch bar that supports the larger pieces for better letter quality |
$25.00
|
| CLAMPING DONUT |
$75.00
|
| CLAMPING DONUT non quick release For more secure holding of work pieces |
$60.00
|
| CLAMPING ROD threaded rod |
$25.00
|
| CLAMPING SPRING |
$1.50
|
| DONUT ROD SPRING COMBO this will insure your vice holds securely. No "popping" |
$95.00
|
| CLAMPING CARRIAGE KNOB with set screws |
$15.00
|
| FRONT CLAMPING SKIRT |
$15.00
|
|
|
|
| JOB STORAGE CARTRIDGE REPAIR XL can hold 20 jobs again (your cartridge) |
$50.00
|
| JOB STORAGE CARTRIDGE XL refurbished |
$90.00
|
| WIZZARD MEMORY SET set of 4 chips to hold 40 jobs. Remember to re-set home |
$100.00
|
| PRINTER CABLE hooks up to the right hand side. Print your jobs instead of saving |
$25.00
|
| ON/OFF/MOTOR SWITCH new style square push button |
$25.00
|
| ON/OFF/MOTOR SWITCH old style rocker arm |
$30.00
|
| ON/OFF/MOTOR SWITCH LAMP |
$2.25
|
| POWER SUPPLY complete with harness & bracket ready to install |
$350.00
|
| AC DISTRIBUTION BOARD |
$250.00
|
| RIFA CHIPS these chips drive the stepper motors |
$18.00
|
| CHARACTER CHIP determines video output |
$90.00
|
| VIDEO RAM CHIPS If you have "hieroglyphics" on your screen, replace these |
$15.00
|
| CRT 5" internal the original monitor that comes with all WIZZARDS |
$450.00
|
| KEYBOARD OVERLAYS protects the keyboard from moisture & debris |
$30.00
|
| DIAMOND DRAG SPINDLES complete with .130 diamond |
$125.00
|
| DIAMOND DRAG INSERTS the tip should be replaced anually |
$20.00
|
| VAC CHIP NOSECONES 1/8" |
$15.00
|
| VAC CHIP ASSY the BEST kind DAHLGREN |
$90.00
|
| PLASTIC NOSECONES 1/8" |
$12.50
|
| ROTARY SPINDLES brand new heavy duty 1/8" |
$350.00
|
|
OTHER SERVICES
|
|
| ROTARY SPINDLES REBUILT | |
| NEW STYLE SPINDLE usually has black top pulley |
$125.00
|
| OLD STYLE SPINDLE |
$100.00
|
| CUTTERS SHARPENED We sharpen your cutters. NO tape please. |
$8.00
|
| Keyboard repair We can repair the "pause" and the "cap lock" keys on most keyboards | |
| Motherboard repair We can repair the board rather than replacing it. 3 hour minimum | |
| Labor rate per hour |
$90.00
|
| MACHINE SERVICE |
$225.00
|
|
WE BUY & SELL USED DAHLGREN EQUIPMENT
|
|
|
24272 LARKWOOD LANE LAKE FOREST, CA. 92630
|
|
|
949-455-1555 Fax 949-455-1861 Toll free
800-554-2377
|
